CRP-RS04-03Z17
Describe
FUNCTIONAL FEATURES
  • Compact and flexible structure, fast running speed, high transmission accuracy and low noise.

  • Highly rigid arm design realizes high load and high speed in one package.

  • 400 mm arm length size, 3kg payload.

  • Suitable for G12 electric cabinet, provide 24-road custom I/O.

  • Support serial port, network, USB and other interface forms.

  • Suitable for handling, palletizing, assembly, 3C and other application fields.

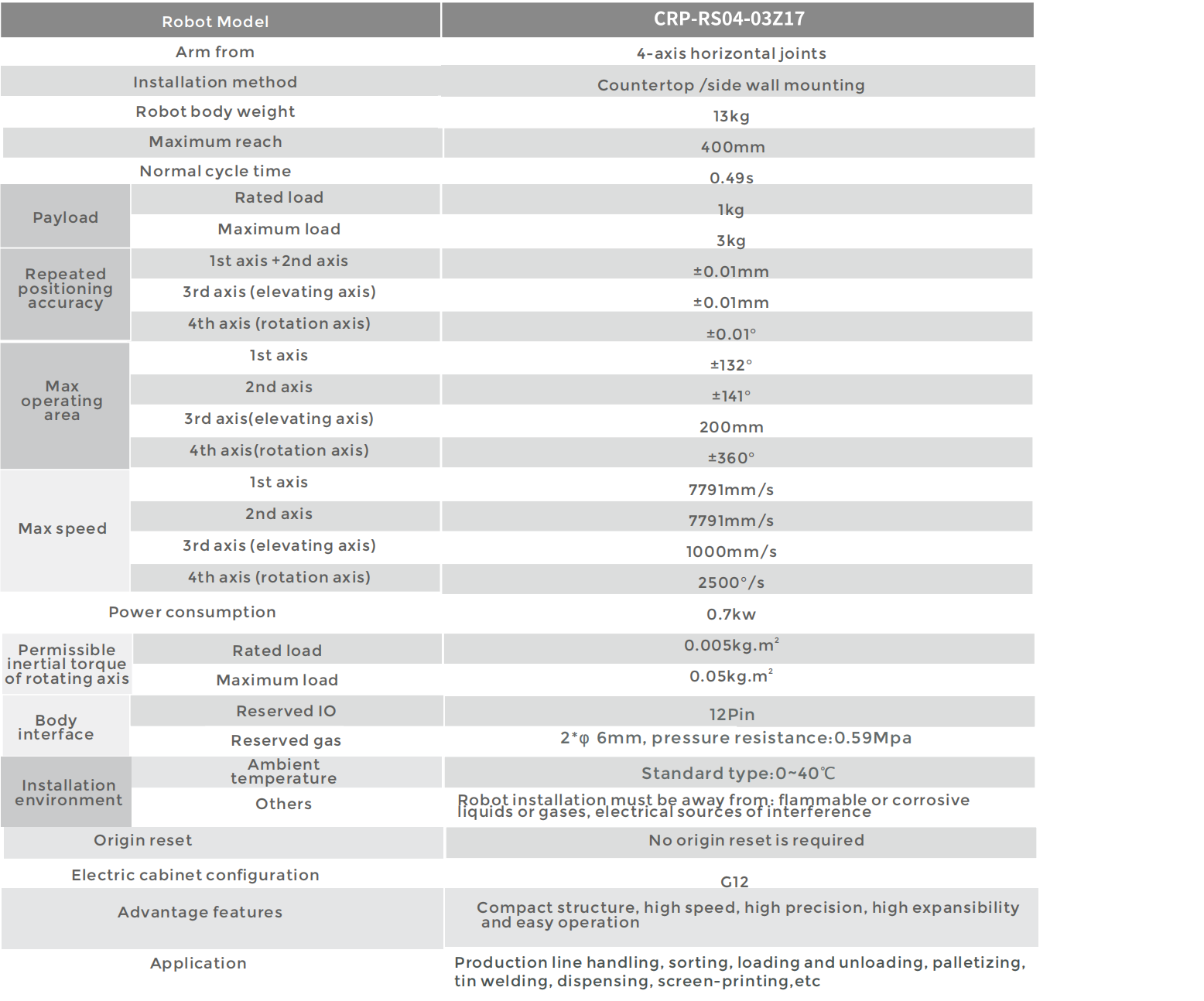

ROBOT BODY TECHNICAL PARAMETERS

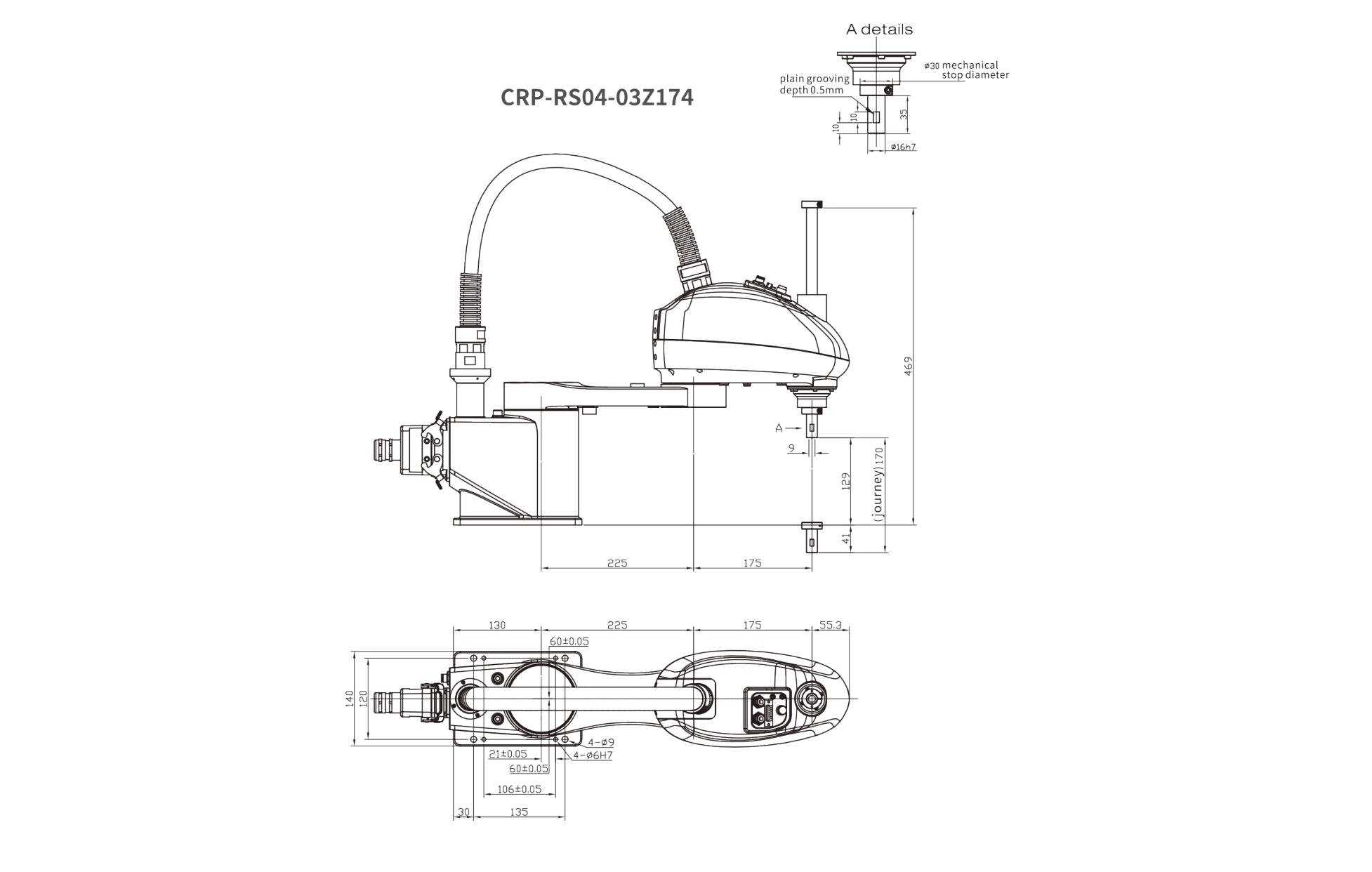

INSTALLATION INTERFACE DIAGRAM

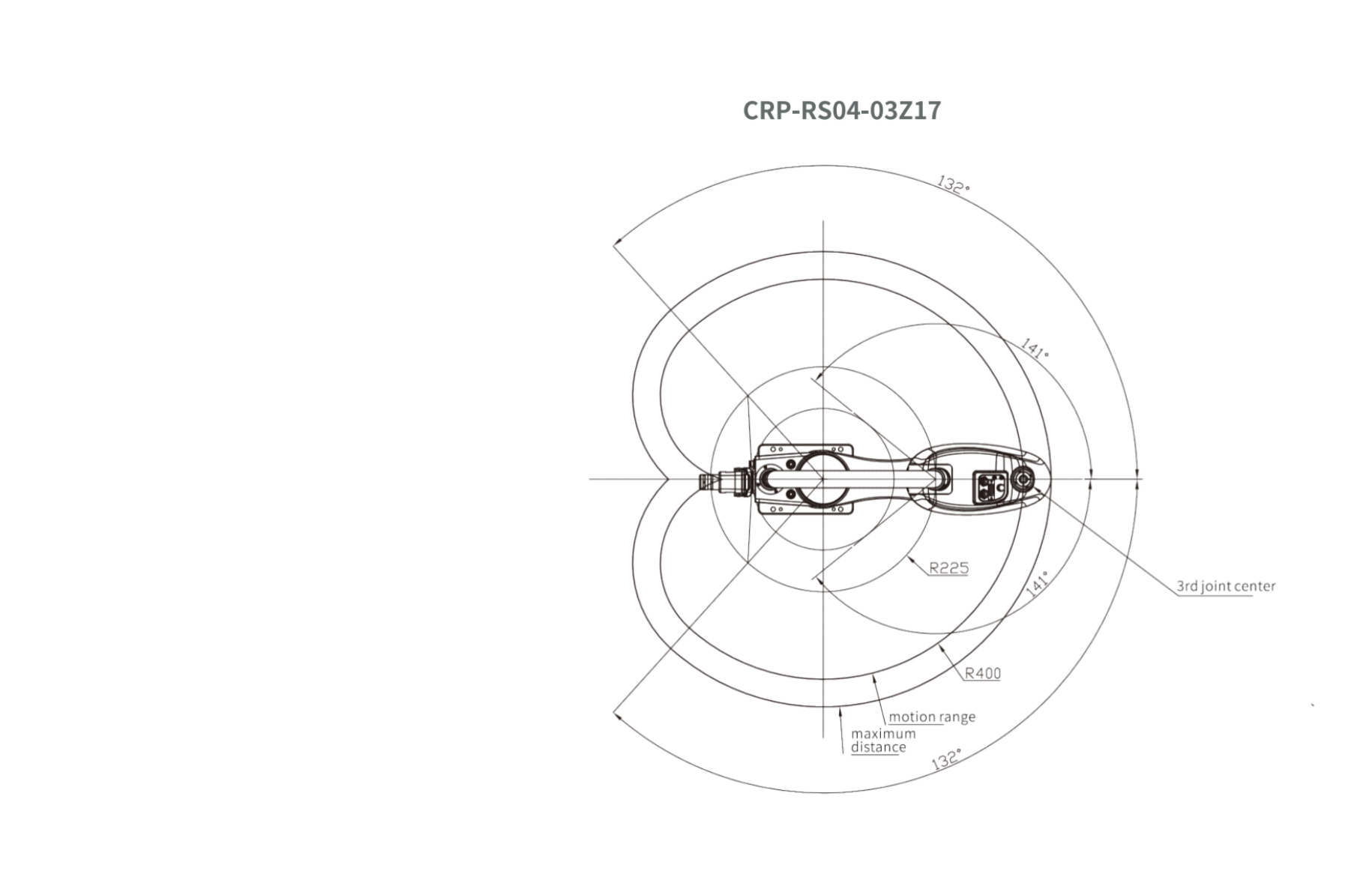

MOTION RANGE DIAGRAM
